Product : Cable Cat5e Cat6

Cat.6A 305M Solid Cable

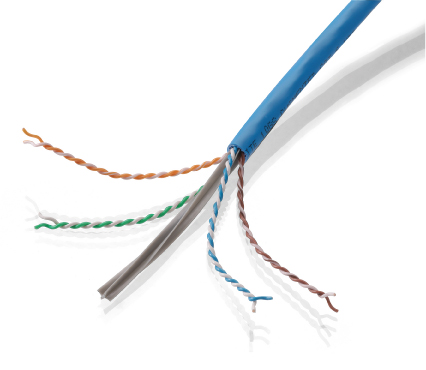

Cat.6A 305M Solid Cable(BC-3U25W)

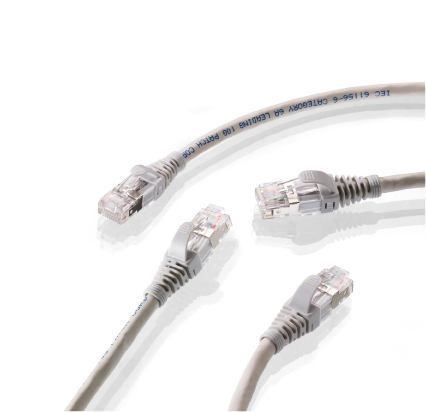

Cat.6A patch cord
Cat.6A patch cord (PC-3119XMA50uD)

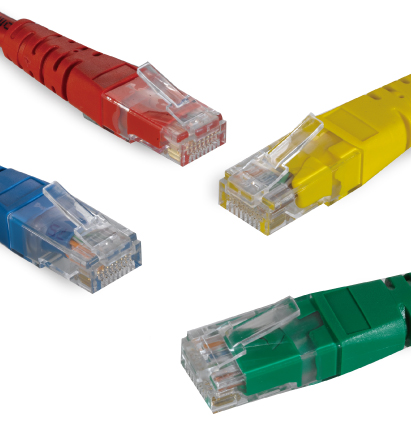

Cat.5e/Cat.6 patch Cord
Cat.5e/Cat.6 patch cord
Cat5e

  PART NO.
  PC-abcdefg
  a=Grade    1:Cat5e 2:Cat6
  b=Cable Type 1:UTP 2:STP 3:FSTP
  c=Copper Type 1:Strand 2:Solid
  d=Color     1:Black 2:Ivory 3:Green  4:White   5:Blue
                      6:Red  7:Orange     8:Yellow  9:Gray
   e=Lergth
   f=Boot:Assembly,Molding
  g=Golden Plating of Plug 3u, 6u, 15u, 30u, 50u
Cat6
  PART NO.
  PC-abcdefg
  a=Grade    1:Cat5e 2:Cat6
  b=Cable Type 1:UTP 2:STP 3:FSTP
  c=Copper Type 1:Strand 2:Solid
  d=Color     1:Black 2:Ivory 3:Green  4:White   5:Blue
                     6:Red  7:Orange     8:Yellow  9:Gray
   e=Lergth
   f=Boot:Assembly,Molding
  g=Golden Plating of Plug 3u, 6u, 15u, 30u, 50u
Bulk Cable (1000FT / 305M-24AWG)
  PART NO.
  BC-abcd
  a=Grade   1:Cat5e 2:cat6
  b=Cable Type　U:UTPS:STP  F:FSTP
  c=Copper Type　1:Strand Wire2:Solid Wire
  d=Color    1:Black  2:Ivory  3:Green  4:White  5:Blue  6:Red
                     7:Orange 8:Yellow  9:Gray



Frequency
(MHz)
 Att Max
(dB/100m)
 Next Min.
(dB)
 PS Next Min.
(dB)
 Elfext Min.
(dB/100m)
 Pseldext Min.
(dB/100m)
 RL Min.
(dB)
1 2 68.3 66.3 63.8 60.8 20
4 4.1 59.3 57.3 51.7 48.7 23
8 5.8 54.8 52.8 45.7 42.7 24.5
10 6.5 53.3 51.3 43.8 40.8 25
16 8.2 50.3 48.3 39.7 36.7 25
20 9.3 48.8 46.8 37.8 34.8 25
25 10.4 47.3 45.3 35.8 32.8 24.3
31.25 11.7 45.9 43.9 33.9 30.9 23.6
62.5 17 41.4 39.4 27.8 24.8 21.5
100 22 38.3 36.3 23.8 20.8 20.1
155 28.1 35.5 33.5 20 17 18.8
200 32.4 33.8 31.8 17.7 14.7 18
240 36 32.6 30.6 16.2 13.2 17.4
300 41 31.2 29.2 14.2 11.2 16.8
350 44.9 30.1 28.1 12.9 9.9 16.3



Frequency
(MHz)		 Att Max
(dB/100m)		 Next Min.
(dB)		 PS Next Min.
(dB)		 Elfext Min.
(dB/100m)		 Pseldext Min.
(dB/100m)		 RL Min.
(dB)
1 2 76.3 74.3 67.8 64.8 20
4 3.8 67.3 65.3 55.7 52.7 23
8 5.3 62.8 60.8 49.7 46.7 24.5
10 6 61.3 59.3 47.8 44.8 25
16 7.6 58.3 56.3 43.7 40.7 25
20 8.5 56.8 54.8 41.7 38.7 25
25 9.5 55.3 53.3 39.8 36.8 24.3
31.25 10.7 53.9 51.9 37.9 34.9 23.6
62.5 15.4 49.4 47.4 31.8 28.8 21.5
100 19.8 46.3 44.3 27.8 24.8 20.1
155 25.1 43.5 41.5 23.9 20.9 18.8
200 29 41.8 39.8 21.7 18.7 18
250 32.8 40.3 38.3 19.8 16.8 17.3
300 36.4 39.2 37.2 18.2 15.2 16.8
400 43 37.3 35.3 15.7 12.7 15.9
550 51.8 35.2 33.2 12.9 9.9 14.9
