Product : Panel |
|
|
|
| |
| Cat.6A Patch Panel |
|
|
 |
Cat.6A Patch Panel 1U*24PORT (PP-32410D) |
| Cat.6 Patch Panel |
|
|
|

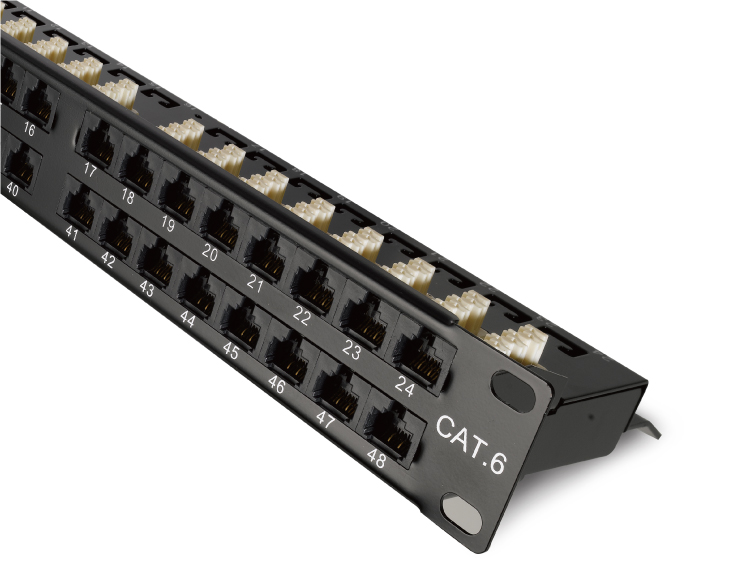

Cat.6 Patch Panel 1U。 48POrt |
| Horizontal Type Patch Panelel |
|
|
|
SPECIFICATION
▲Terminal Type
110 Type: AT&T Type
Dual Type: Suitable For Both 110 Type & Krone Type
▲Acceptance 22~26 AWG Solid Wire
▲Match ANSI/TIA/EIA-568-A,
ISO/IEC 11801, EN50173
▲Size 19"x1U
▲Color Standard: Black
Special: By Request
▲Special Design By Request
▲OEM Logo By Request |
PART NO.
PP-abcde
a=Grade
1:Cat5e
2:Cat6
b,c=Port
12,16,24,32
48,72,96
d=Terminal Type
l:110 Type
2:Dual Type
e=IDC Cap
0:W/O
1:W/H |
|
|
| Vertical Type Patch Panel |
|
 |
|
SPECIFICATION
▲Terminal Type
110 Type: AT&T Type
Dual Type:Suitable For Both 110
Type & Krone Type
▲Acceptance 22~26 AWG Solid Wire
▲Match ANSI/TIA/EIA-568-A, ISO/IEC 11801, EN50173
▲Size 19"X1U, 19"X2U, 19"X3U, 19"X4U
▲Color Standard: Black
Special: By Request
▲Special Design By Request
▲OEM Logo By Request |
PART NO.
VP-abcde
a=Grade
1.Cat5e 2.Cat6
b,c=Port
08,12,16,24
d=Terminal Type
1:110 Type
2:Dual Type
e=Shielding Type
U:Unshielding
S:Shielded
F:Full Shielded
|
|
| Mini Type Patch Panel |
|
 |
|
SPECIFICATION
▲Terminal Type
110 Type: AT&T Type
Dual Type: Suitable For Both 110
Type & Krone Type
▲Acceptance 22~26 AWG Solid Wire
▲Match ANSI/TIA/EIA-568-A,
ISO/IEC 11801, EN50173
▲Color Standard: White
Special: By Request
▲Special Design By Request
▲OEM Logo By Request |
PART NO.
MP-abcde
a=Grade
1:Cat5e 2:Cat6
b,c=Port
6,8,12
d=Terminal Type
1:110 Type
2:Dual Type
e=IDC Cap
0:W/O
1:W/H |
|
| 19''Modular Insert Patch Panel |
|
 |
|
SPECIFICATION
▲Design For
Keystone Jack (RJ45/RJ12/RJ11) / Blank Insert
ST Fiber Optical Connecter / F Connecter
BNC Coupler / RCA Connecter
▲Size 19"X1U 19"X2U 19"X3U
▲Color Standard: Black
Special: By Request
▲Special Design By Request
▲OEM Logo By Request |
PART NO.
IP-ab
a,b=port
12,16,24,,32,48 |
|
|
|
|
|
|
 |
